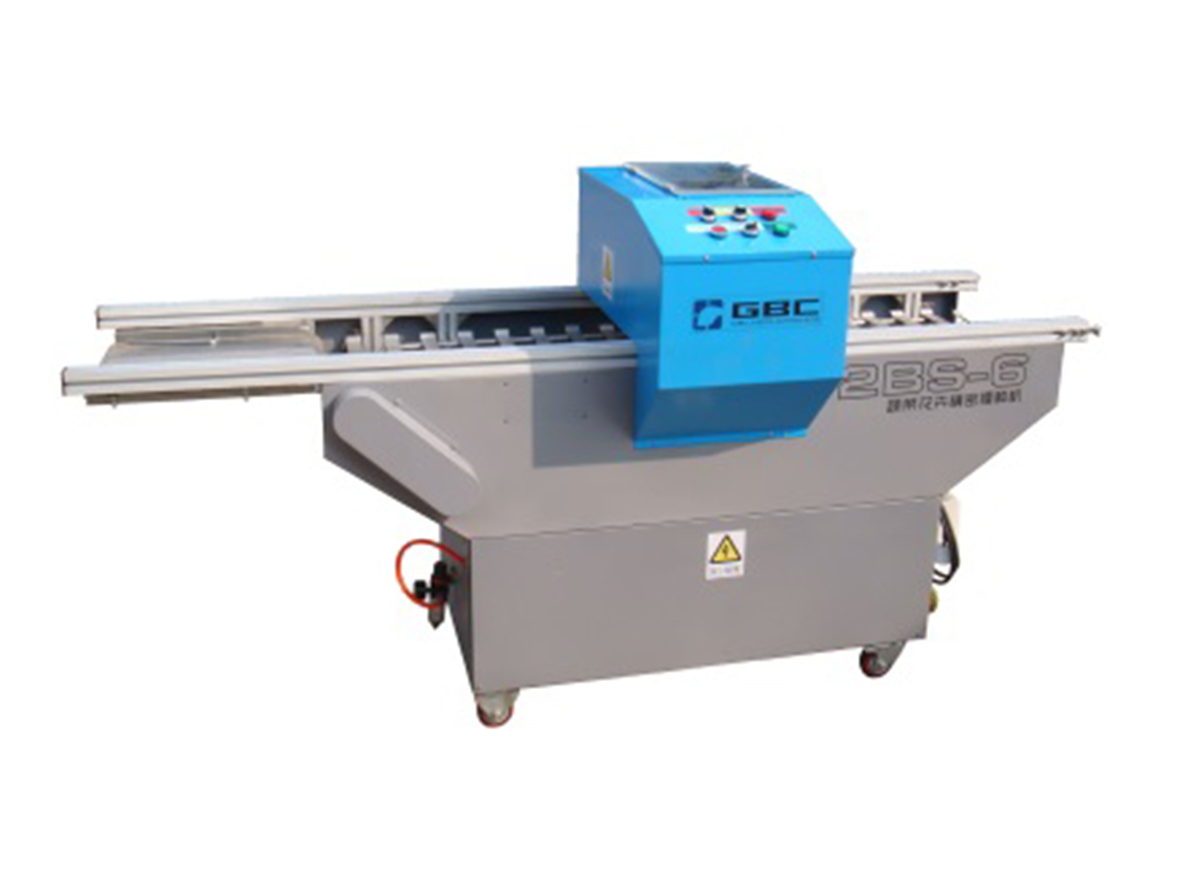

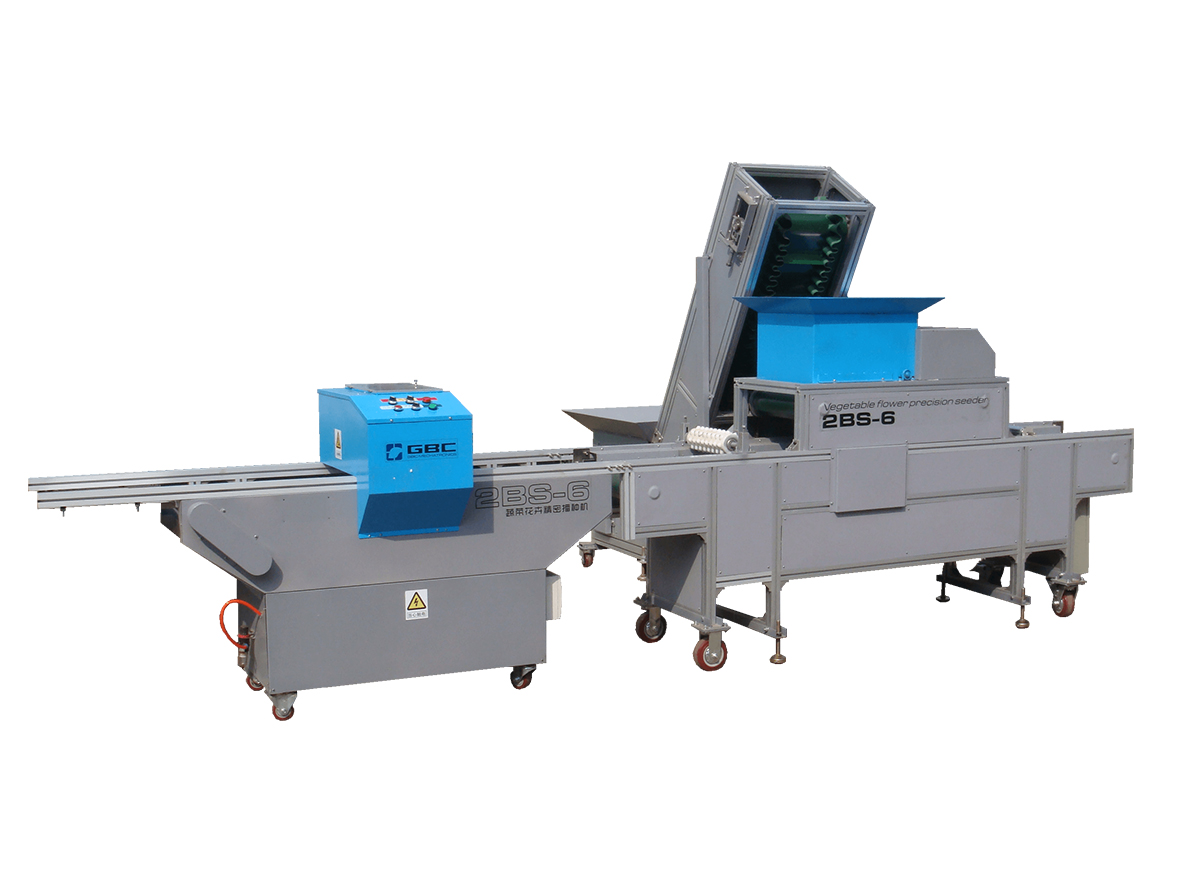

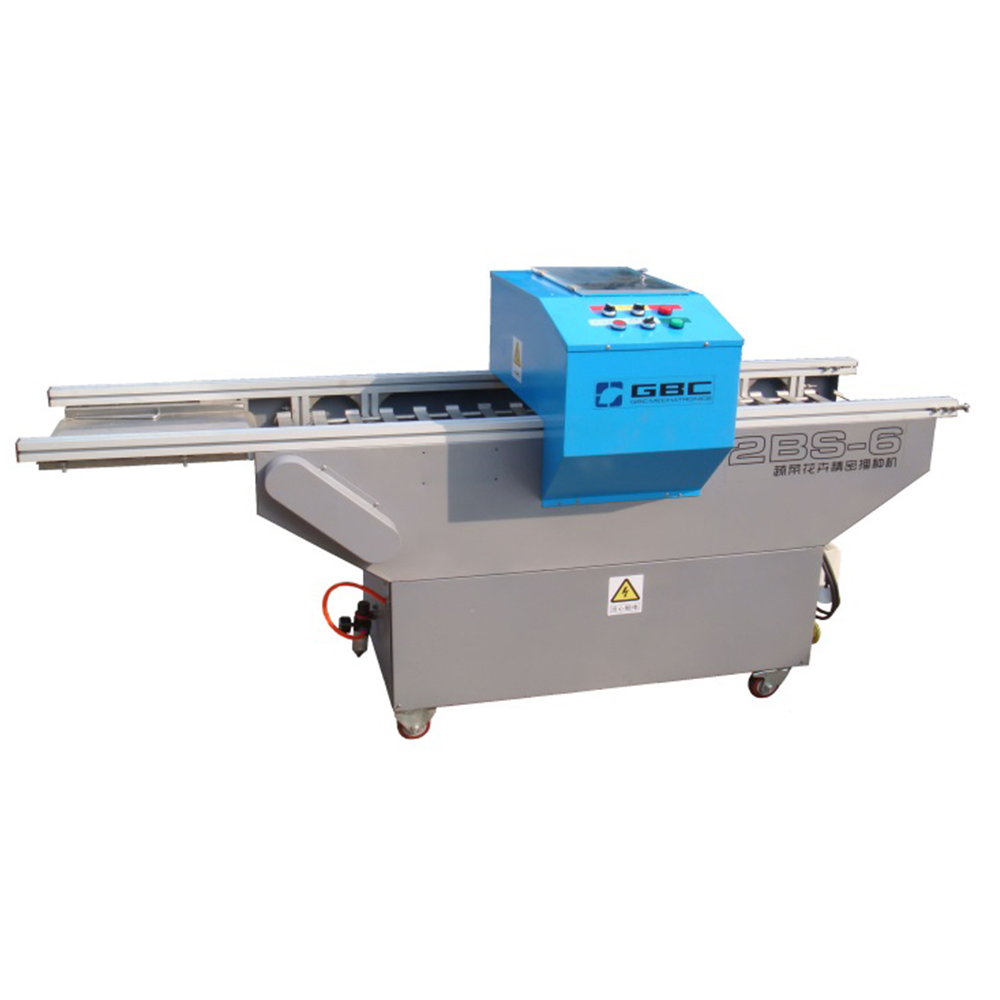

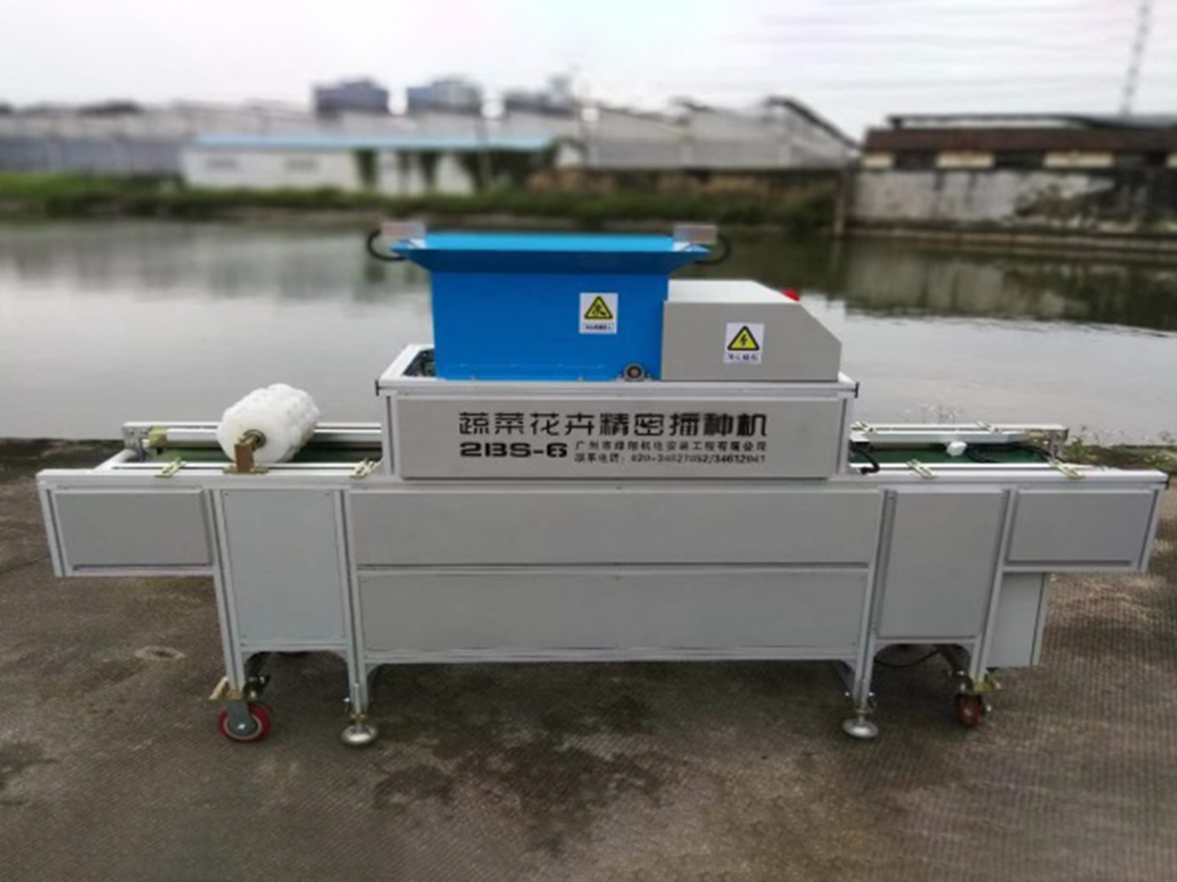

2BS-6 Pneumatic drum seeder
How it works
When working, a drum with multiple rows of suction holes is used, Firstly, vacuum adsorption seeds are formed in the drum, When rotating above the seedling tray, a low-pressure airflow is formed in the drum to release seeds for sowing, Then, high-pressure airflow is formed in the drum to wash the suction hole, and then vacuum adsorption seeds are re-formed in the drum to enter the next cycle of sowing. It is suitable for high-efficiency precision planters in large and medium-sized nursery farms, suitable for most seeds such as flowers and vegetables, and the sowing accuracy can reach 99% (for clean and regular seeds).
Main technical parameters
| Serial number | Project | Unit | Design value |
| 1 | Model specification | / | 2BS-6 |
| 2 | Structural type | / | Pneumatic drum type |
| 3 | Overall dimensions of production line
(Length × Width × Height) |
Mm | 7000 × 2500 × 2500
|
| 4 | Seeder quality | Kg | 800 |
| 5 | Power | Kw | 4 |
| 6 | Operating voltage | V | 220 |
| 7 | Sowing qualification rate | % | ≥ 97 |
| 8 | Void rate | % | ≤ 3 |
| 9 | Productivity | Disk/h | 600-1200 |
| 10 | Applicable plug plate | A hole/disk | 60, 72,105,128,200 |
Advantage characteristic
2BS-6 Force Roller Vegetable Seedling Plug Seeder our company and South China Agricultural University jointly developed a new generation of automatic high-speed plug sowing production line for vegetables and flowers; It is one of the main achievements of the National Science and Technology Plan in the 12th Five-Year Plan. This technology has passed the appraisal of scientific and technological achievements in Guangdong Province, and the core technology of this achievement has reached the international advanced level.

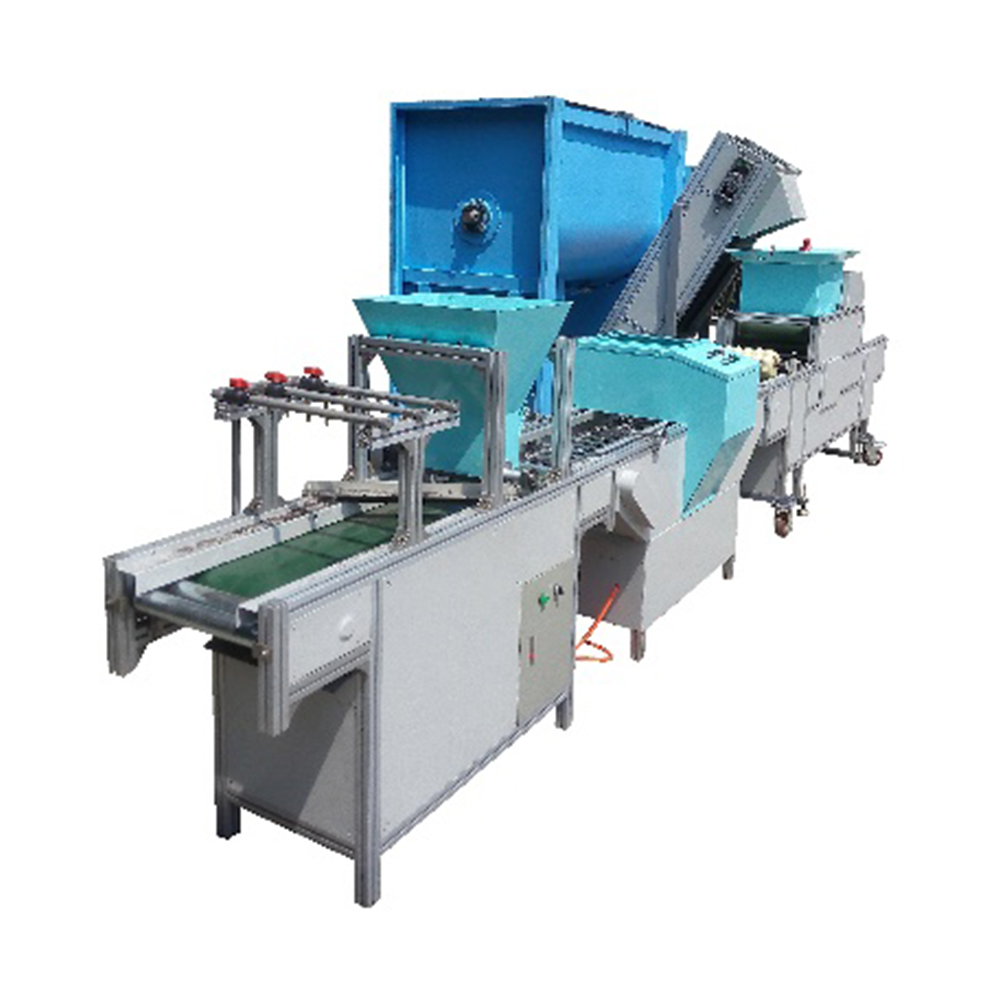

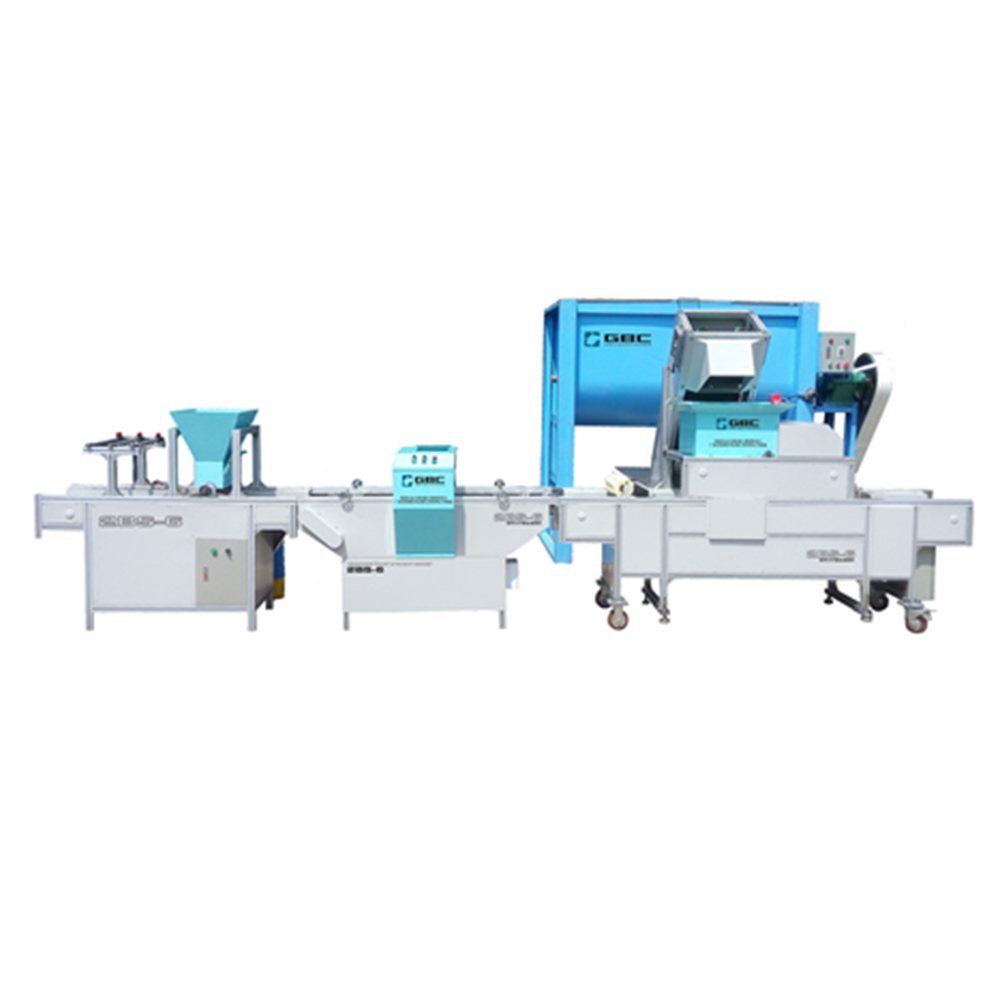

The pneumatic drum type vegetable seedling plug seeder consists of a soil loading system, a plate loading system, a hole pressing system, a plug conveying system, a seeding system and a soil covering and sprinkling system. It has six advantages:
- Simple operation, full-automatic control, and 2-3 people can operate;
- Accurate seeding, with a qualified rate of over 97%;
- Continuous and efficient, the pneumatic drum seed metering device runs continuously without impact, and can sow up to 600-1200 discs per hour;
- It is not easy to block and has an automatic cleaning device;

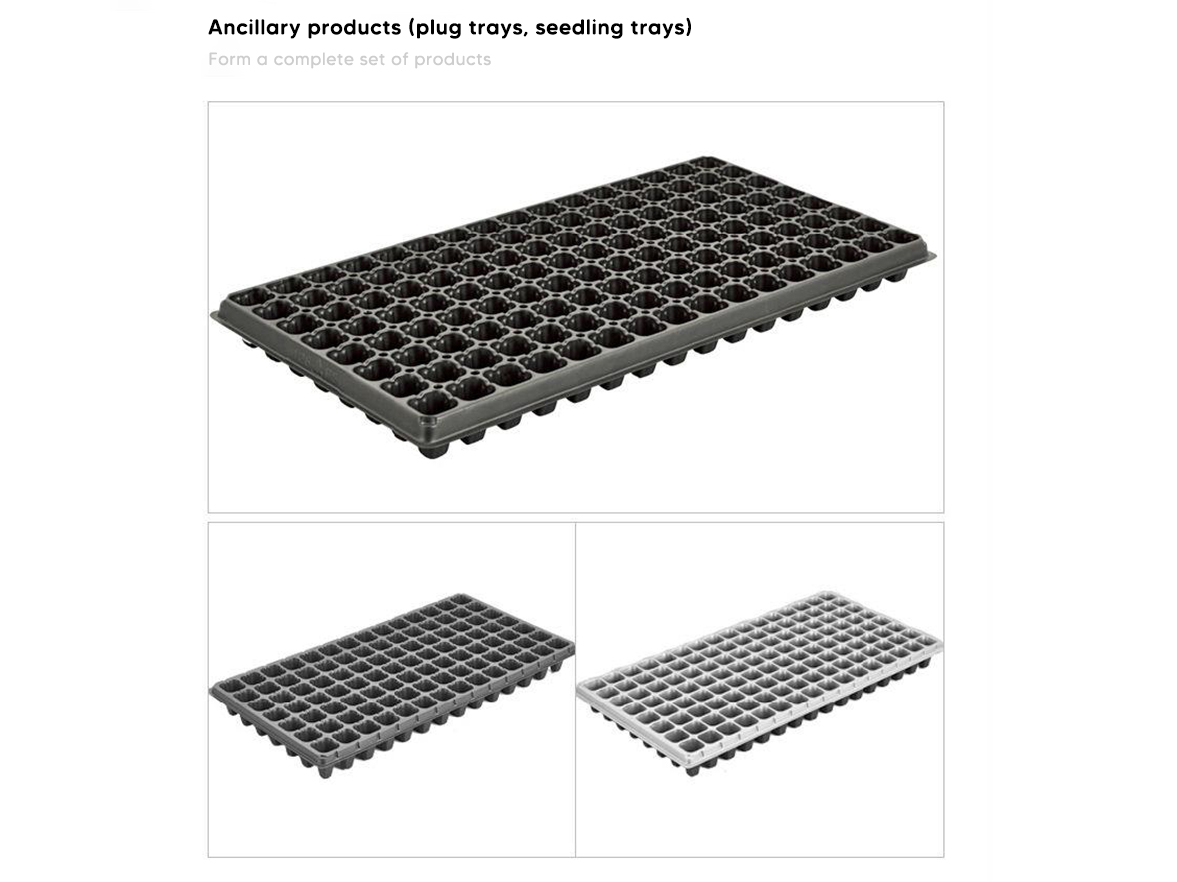

- Strong adaptability, plastic plug or foam plug with specifications of 60, 72, 105, 128 and 200 can be configured according to customer requirements;
- Strong seed adaptability. By changing the seed metering device, round and flat seeds with diameters between 0.5-3.0 mm can be sown for vegetables, tobacco and flowers.
2BS-6 force drum plug seeder for vegetable seedling raising represents the advanced level of sowing production line at present, and is the key equipment in intensive seedling raising of vegetables in vegetable basket project, which realizes complete mechanical automation of sowing production.
Automatic vegetable plug precision seeder

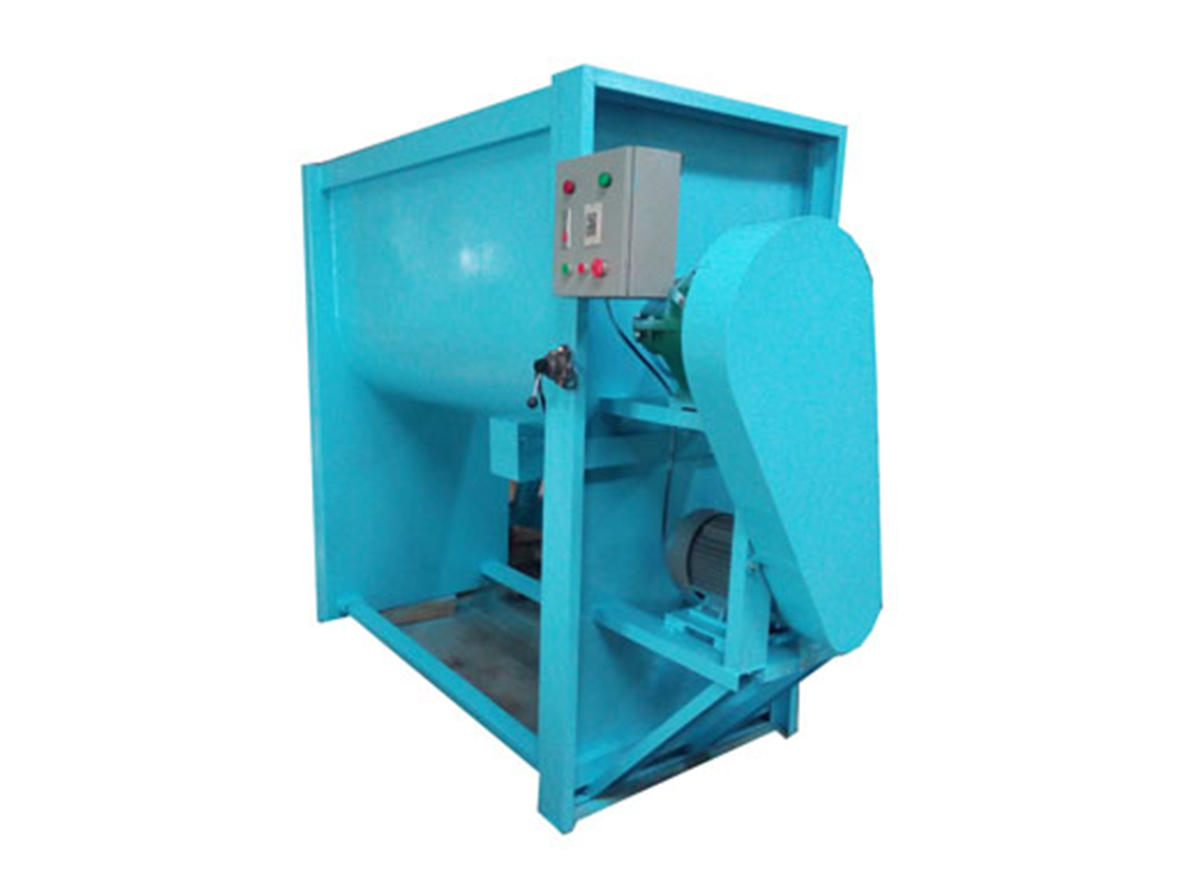

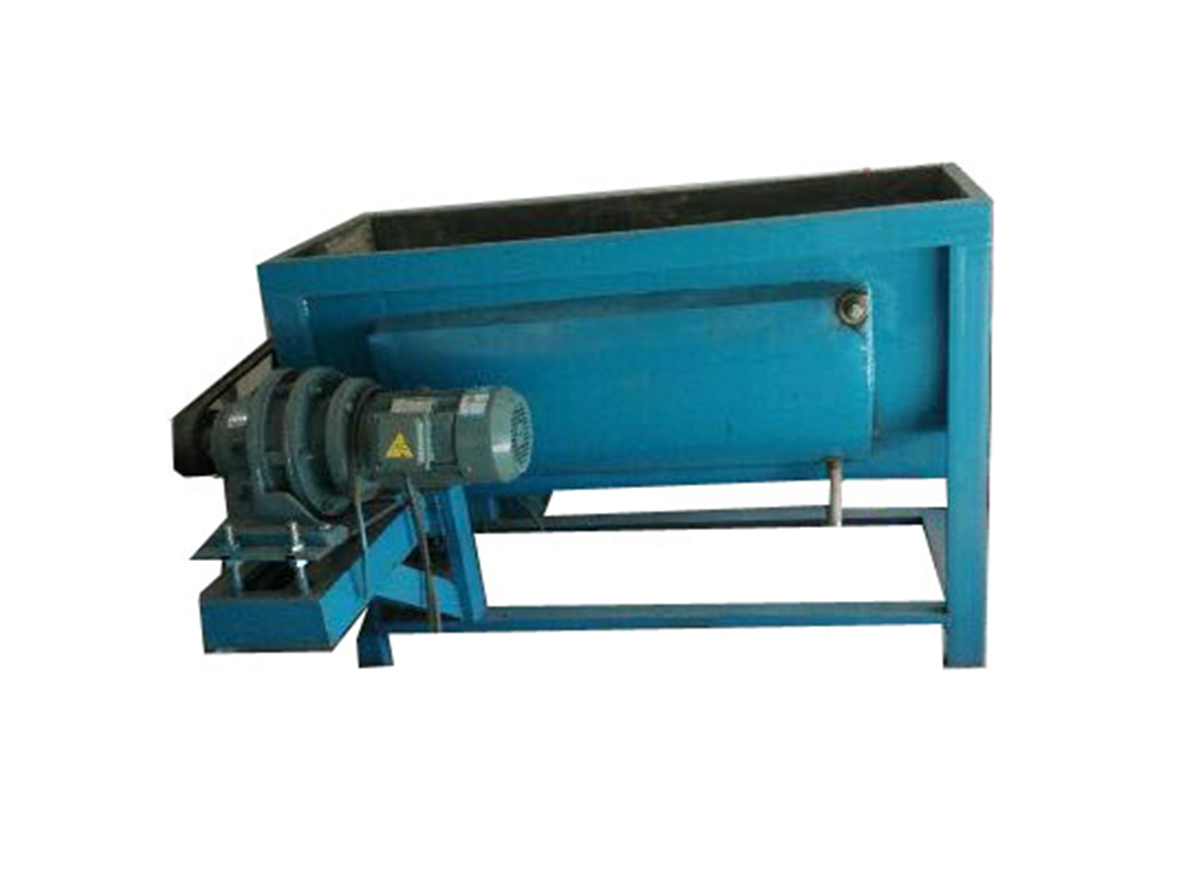

Matrix decompression mixer matrix decompression mixer

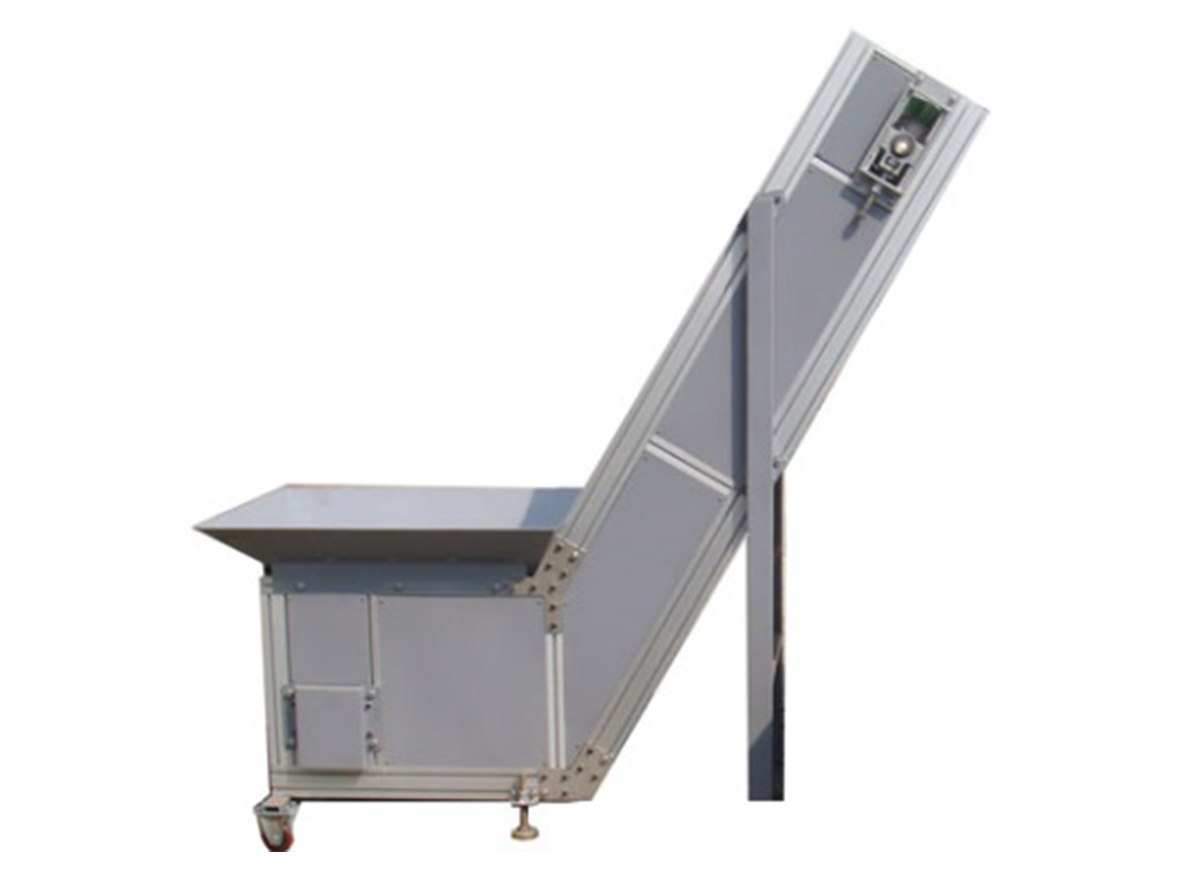

Substrate loading machine
