2YB-G500

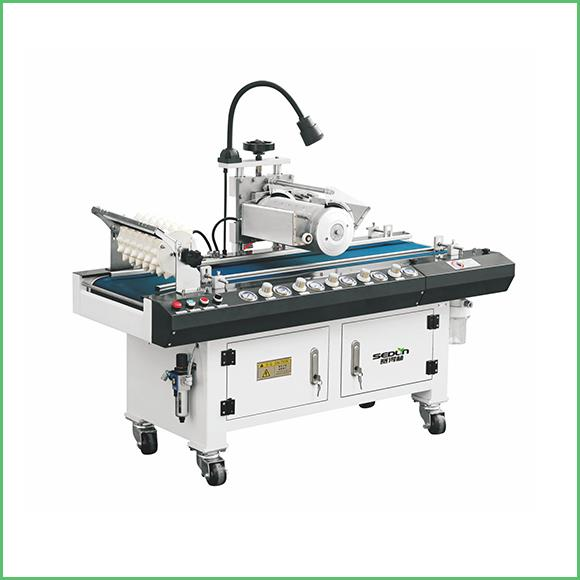

The vegetable and flower precision seeding line adopts the air suction drum seeding method. From substrate loading, cavitation, seeding, soil covering to spraying, the whole machine adopts innovative technologies such as opto-electromechanical control and diskless detection.Vegetable planter Automatic flow production of seedlings. The characteristics of the drum planter are: *Ensure high-efficiency seeding of 400-500 trays/hour; *Plug-in type seeding drum can be quickly replaced; *The precision of round or pelletized seeds is ≥99%; *The accuracy of rootstock pumpkin seeds ≥92%; *The accuracy of tomato (dehairing) seeds is ≥93%; *Accuracy of melon seeds ≥95%; *Pepper seed accuracy ≥97%; *The seeding drum has an anti-clogging function; *Economical, practical and cost-effective; *One-key start, simple operation; *Accuracy rate of various seeds;
| 2YB-G500 | technical parameter |
|---|---|
| 2YB-G500 | technical data |
| Dimensions mm | 5600*710*1280mm |
| overall dimension | 5600*710*1280mm |
| Seeding accuracy% | ≥98 |
| Seeding accuracy | ≥99 |
| Porosity% | ≤1 |
| Void rate | ≤1 |
| Hourly productivity disc/h | ≥500 |
| Hourly productivity tray/hr | ≥500 |
| Seed breakage rate | ≤0.1 |
| Seed breakage rate | ≤0.1 |
| Overall weight (KG) | 635 |
| Total Weight | 635 |
| Seed meter form | automatic air suction drum |
| Seed metering model | automatic air suction drum |
| Air source pressure (mpa) | 0.4-08 |
| Air pressure | 0.4-08 |
| Total power of supporting motor (KW) | 6 |
| Rated motor total power | 6 |
| Soil thickness (mm) | 20-120 |
| Soil substrate thickness | 20-120 |
| Covering soil thickness (mm) | 10-20 |
| Covering soil thickness | 10-20 |
| Applicable breeding plate mm | width<350 height<100 |
| Applicble plug tray | width<350 height<100 |
| Matching power type | electric motor powered drive |
| Rated power | electric power drive |
| Power supply | AC220V/50HZ |
| Power source | AC220V/50HZ |

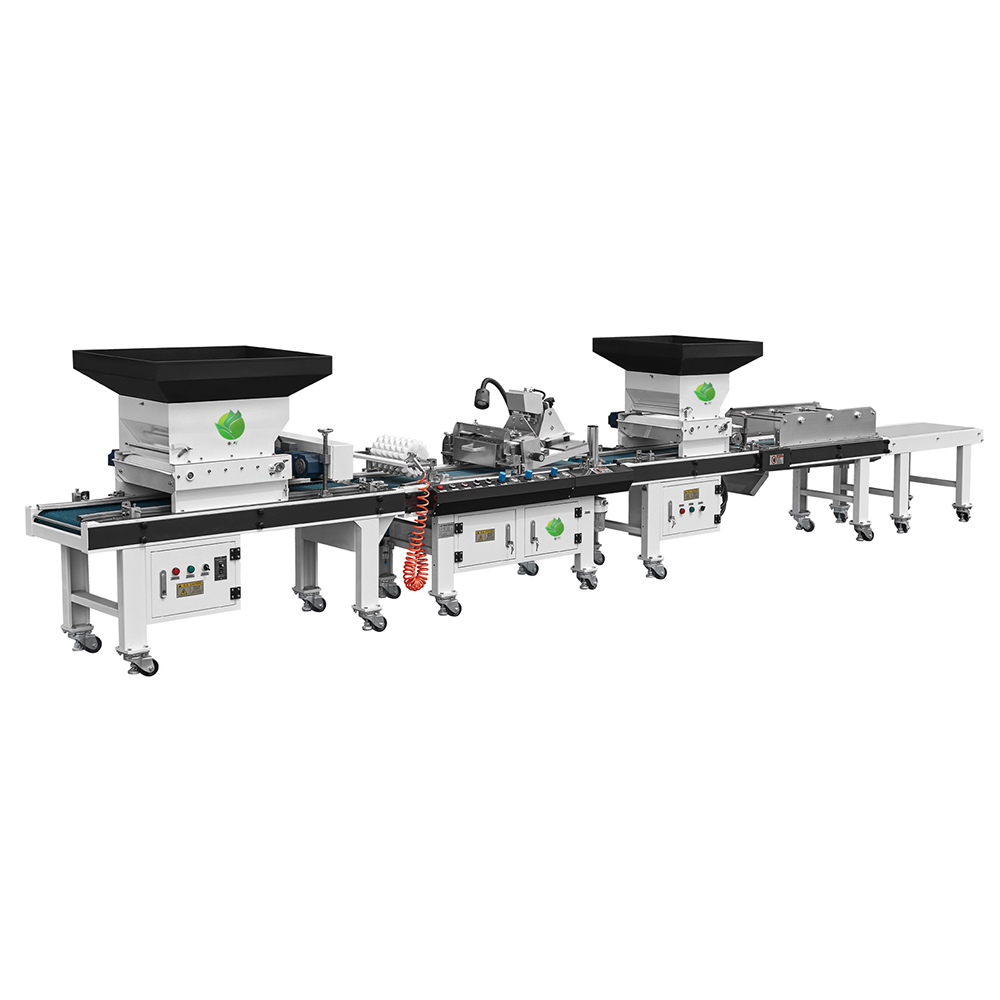

- Production process : GY30A-1 Substrate tray machine ; GY30A-2 Drum seeder ; GY30A-3 Soil filler and waterall ; GY30A-Stalk and transmission platform
- Machine specification: Dimensions: Overall dimension: 6800*750*1350 ; power and voltage: 2.4kw/220v ; Chinese electricity ; Seeding speed 350-400 trays /per hr ; Seeding accuracy: above 99% (pill seeds)
- System configuration description:

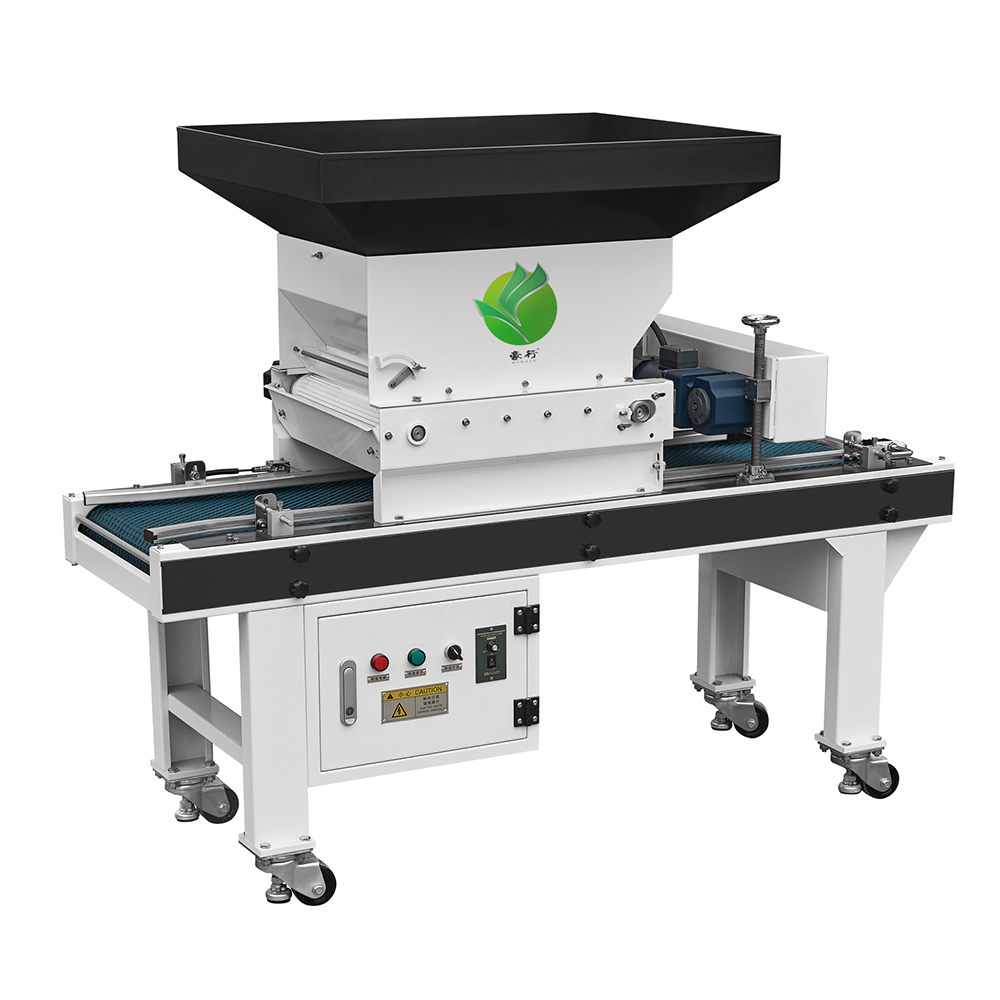

1. G30A-1 substrate tray machine ; Outline dimension (mm):1600*750*1310 ; Machine power / voltage: 0.6KW/220V ; The maximum size of the tray (mm):600*400 ; The soil and transporting device with variable frequency speed regulation system, fully matched with the next step speed. It has automatic photoelectric detection system, no disc soil.

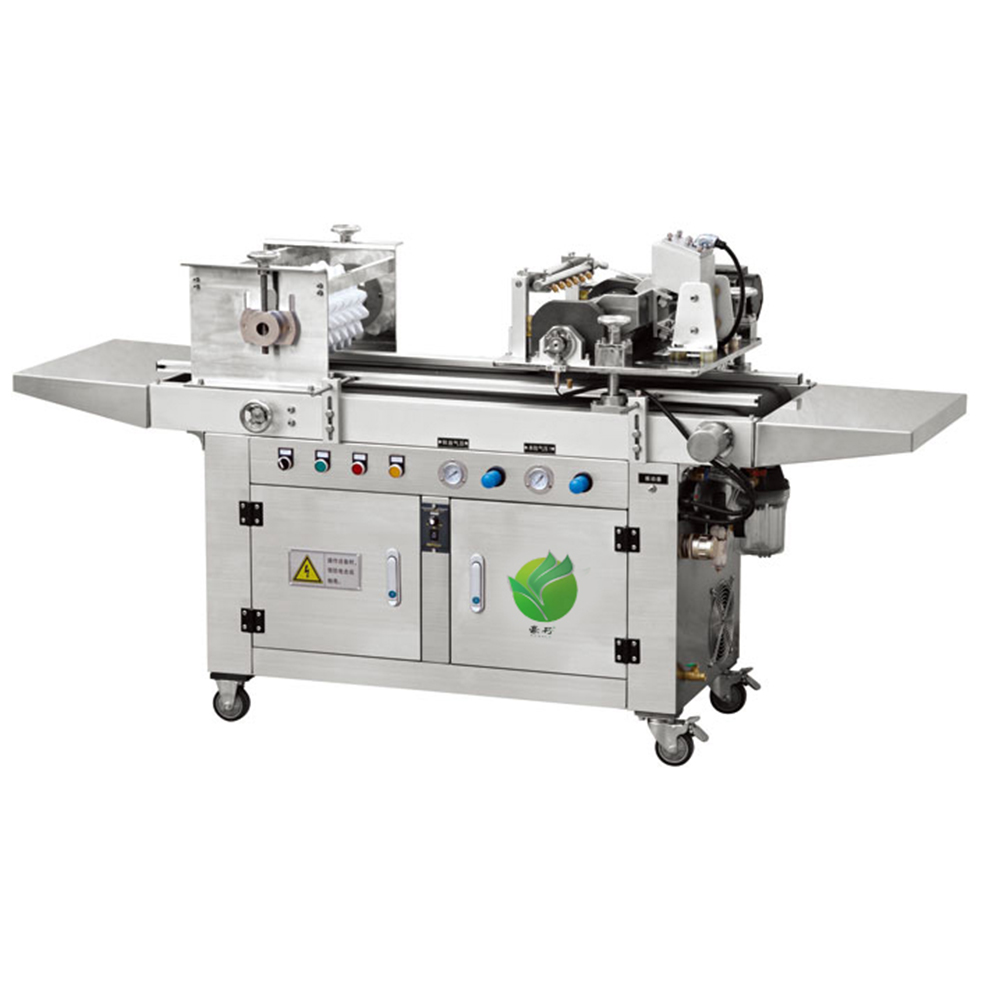

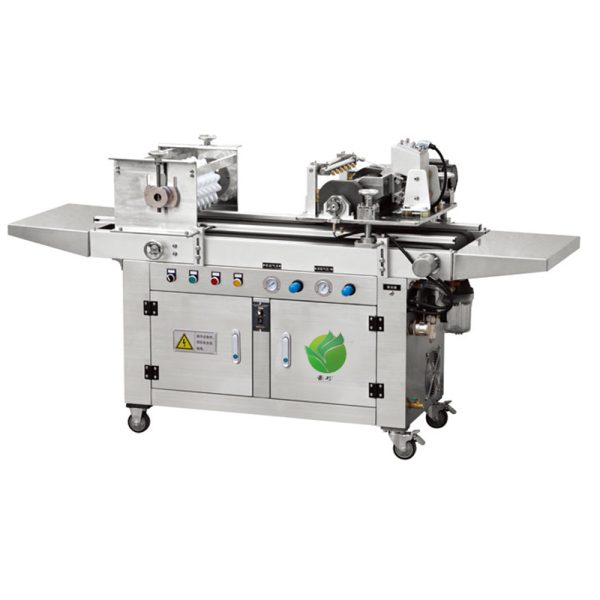

2.G30A-2 Pneumatic Drum Seeding Machine: Outline dimension (mm):1500*660*1000 ; Machine power / voltage: 1.2KW/220V ; The use of buttons, one button operating system, simple, practical, fast. It has automatic photoelectric detection system, no disk do not sow. It is equipped with high precision electronic drum control system, ensure accurate seed on demand to place into the hole . The special seed recovery device, so that the seeds do not waste. The application of 0.3-12mm seeds, seed shape is not restricted, wide application range.
3.G30A-3 soil filler and water-all: Outline dimension (mm):2500*710*1350; Machine power / voltage: 0.6KW/220V. Conveying device with variable frequency speed control system, to ensure the production line synchronous operation.With the photoelectric sensor system, complete covering, automatic watering operation. The simple adjustment on the partition and meet the required amount of soil plug. By the fine control valve to determine the size of water.

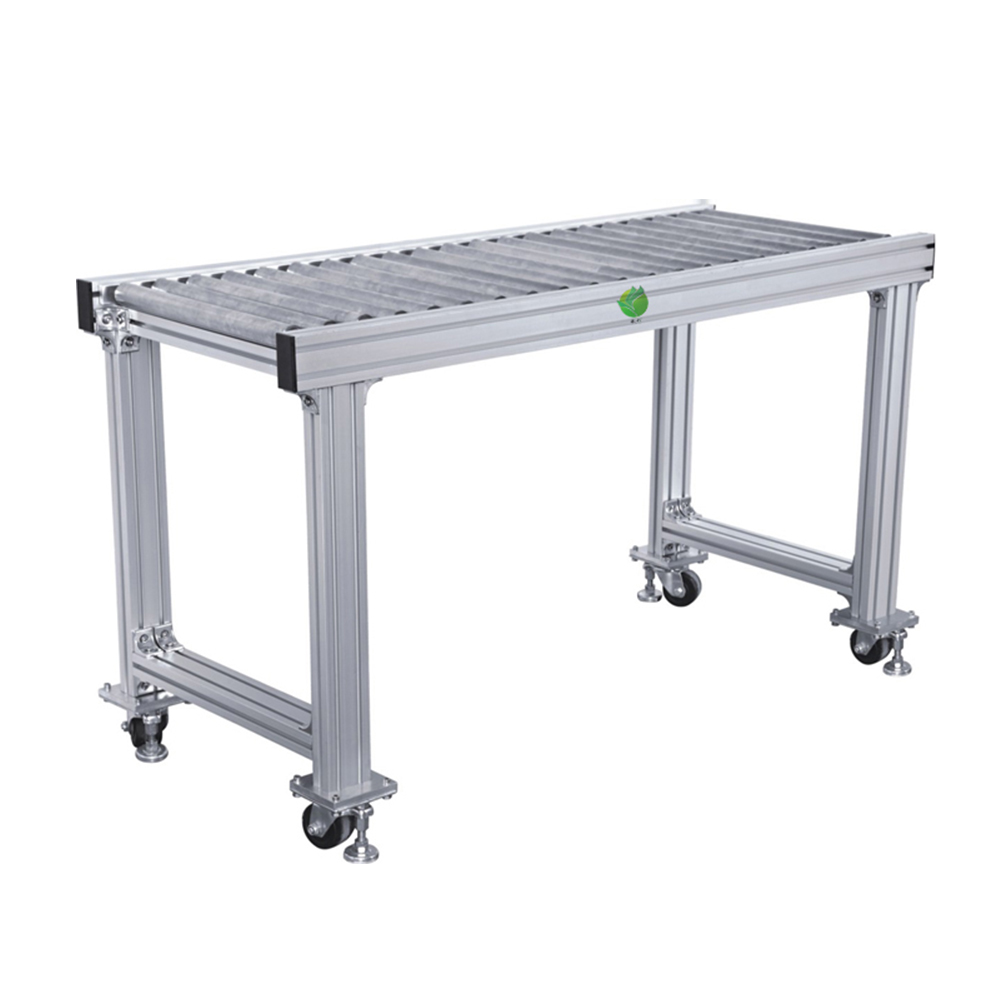

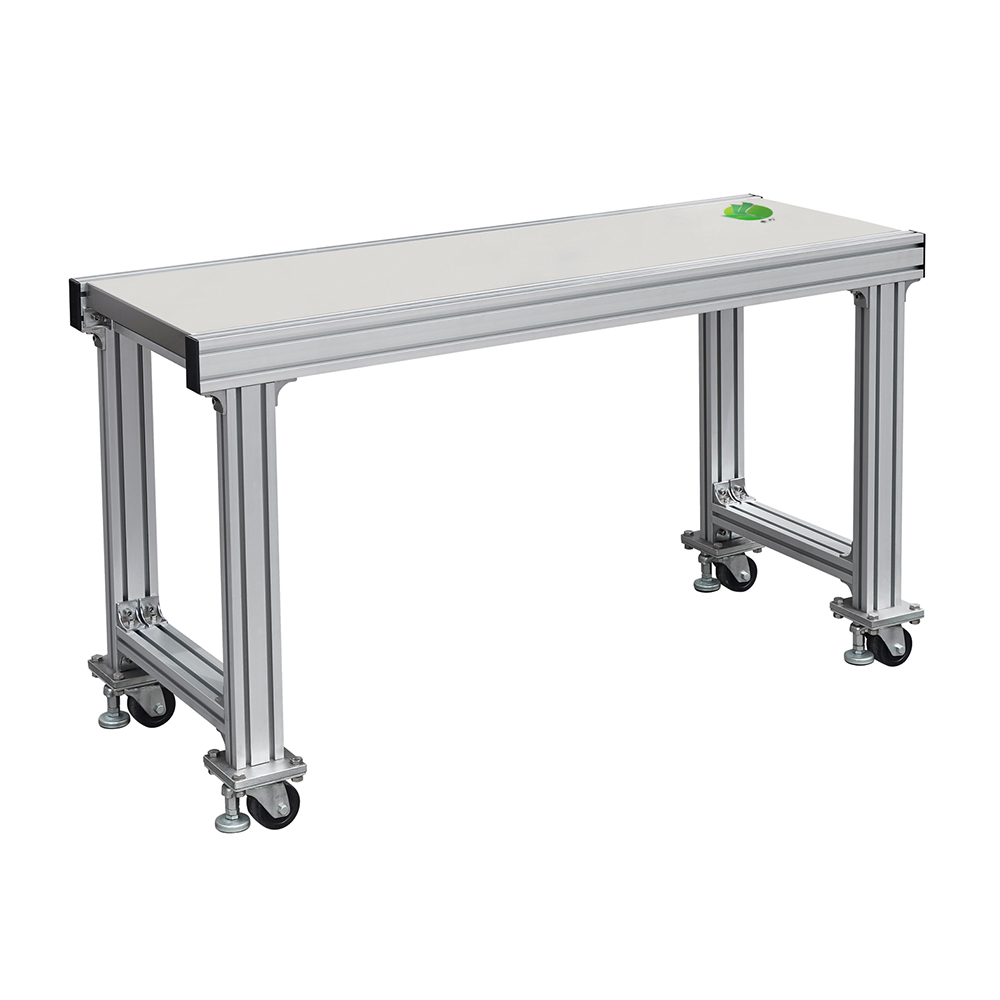

4.G30A-4 Transmission platform : Outline dimension (mm):1200*510*550 ; No power delivery platform, simple and practical.
